The Marshall Protocol is a proprietary communication protocol developed by Nayax that operates over RS232. It supports reliable transaction exchange between a machine controller and the VPOST, ONYX, and VPOSM product lines, with a payment API that supports various payment flows, such as:
Pre-Selection
Pre-Authorization
Multi-Session
Multi-Vending
The Marshall SDK provides a comprehensive approach to using these flows, eliminating the need to manage the details of the Marshall protocol.Looking for fuel dispenser or forecourt integration instead? See Marshall Pro for FCC (forecourt controller) integration.
Set Up the MCP Server
Connect your AI assistant to Nayax documentation for instant answers.
Available LanguagesFor your convenience, we provide the SDK in C, C#, and JAVA.
Price field/ Decimal PlaceThe price field in Marshall is an integer that is 2 bytes long, meaning the highest value that can be sent to the device is 65535 (0xFFFF). The actual price the device would attempt to charge a consumer for would be a multiplication of the price sent from the peripheral with 10^(-decimal place): meaning the device would look at its own Decimal Place configurations as set in Nayax Core (its value depends on the country on which the device is installed in) when making the price calculations for the authorization and settlement.This means that in case of Decimal Place of 2, the highest price that the device would be able to authorize or charge the consumer would be 655.35
System overview

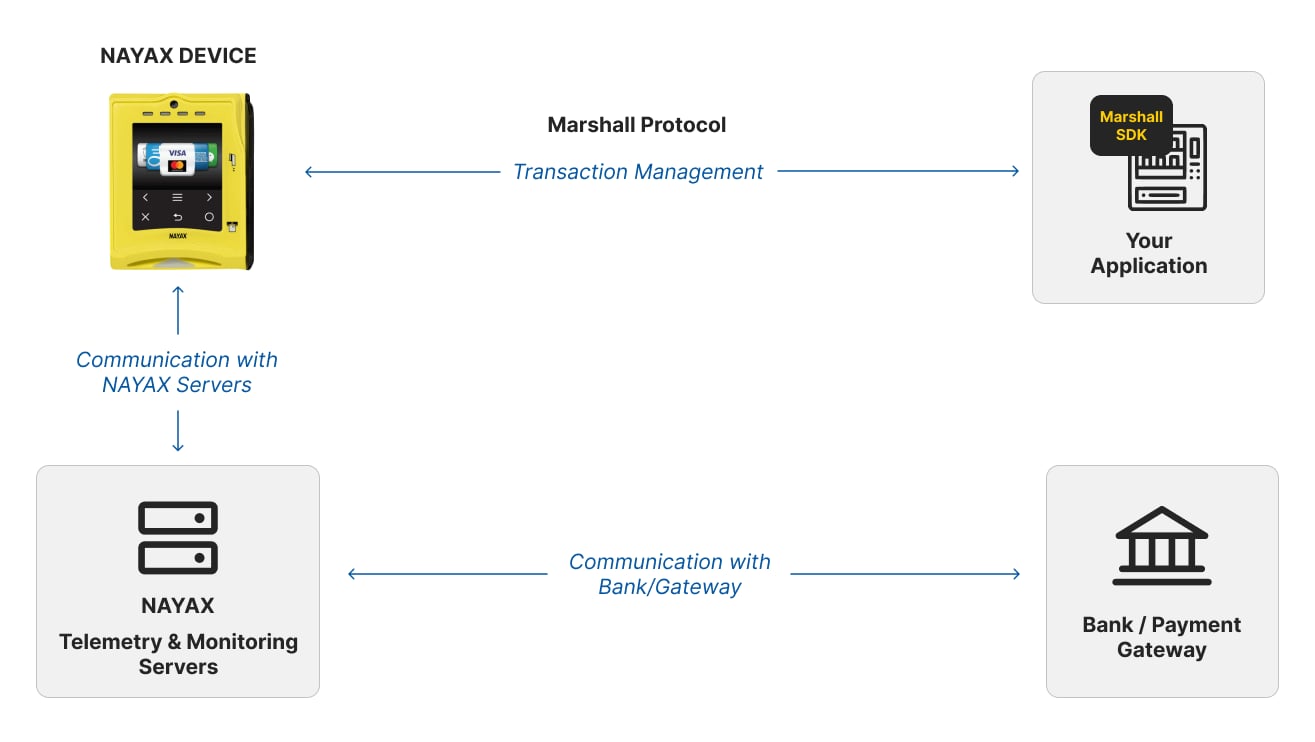

The following diagram illustrates the transaction and communication flow of the Nayax system.
Below is a breakdown of the diagram:
At the core is the Nayax device, which manages transactions. This device communicates with Nayax payment and monitoring servers for transaction processing, which, in turn, interact with banks or payment gateways to finalize payments.
The blue arrows indicate the primary transaction flow between the Nayax device server and banks.
The host machine communicates with the VPOS over the Marshall protocol.
Guides
Terms of ServiceBefore getting started with the Marshall SDK, read the Terms of Service of our developer’s zone.
To start the Marshall SDK integration, check the following documentation pages:
Get started
Set up the Marshall SDK for Nayax VPOS Touch and VPOS Media devices.
Payment flows
Choose the payment flow that matches your machine’s operational needs.
Create payments
Set up and manage cashless payment transactions from your peripheral’s controller.
