To set up Encryption on Delivery to Amazon SQS, you must have access to Nayax Core and Lynx API with the appropriate user permissions, Specifically the following roles:
  • Lynx - SQS Encryption
To enable the encryption on the messages sent Amazon SQS you should mark the Enable Encryption check box in the relevant configuration section as described in the previous sections.

​
Access the Lynx API

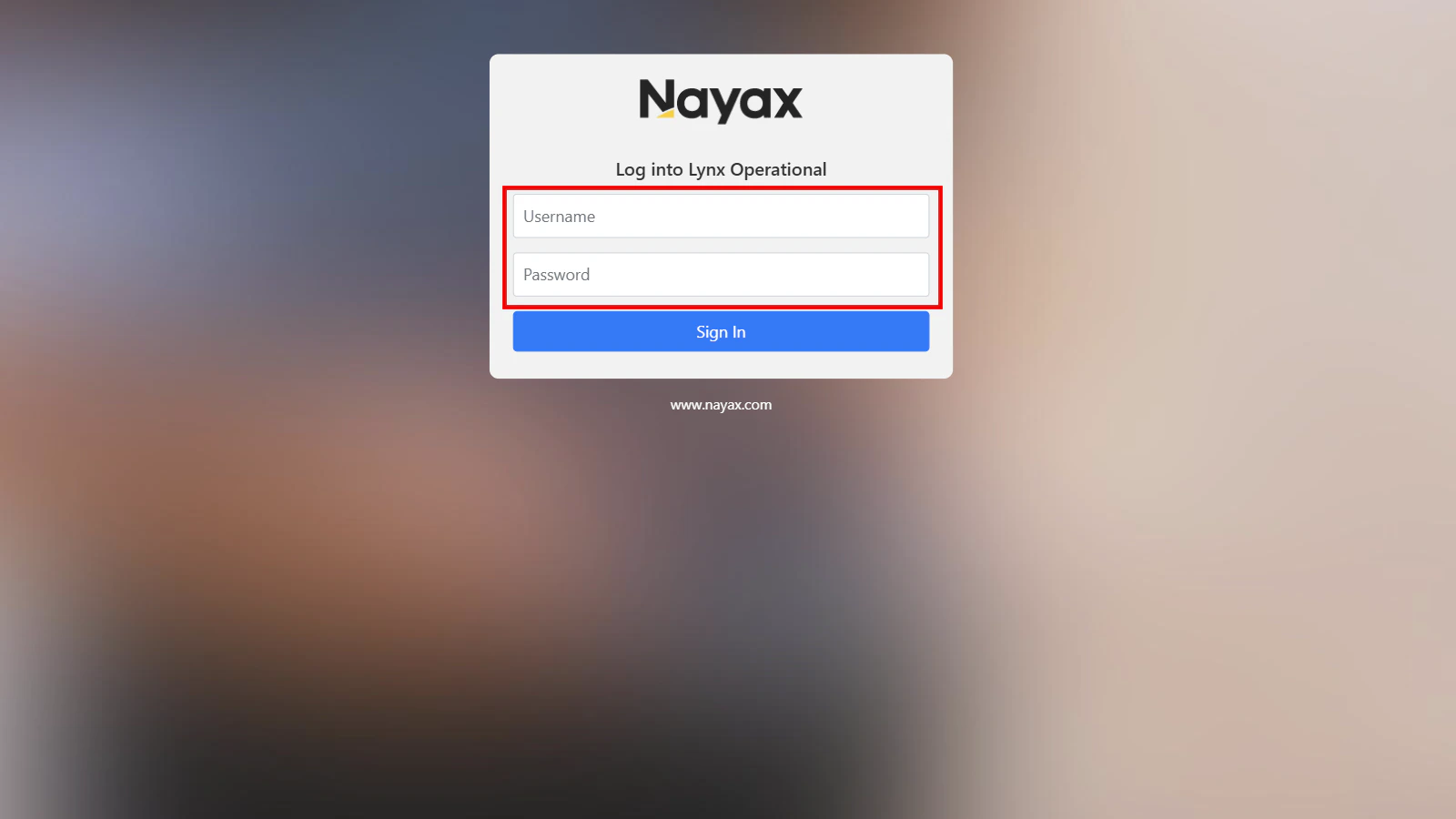

  1. Log into Lynx Operational
  2. Enter your Nayax Core credentials.

​
Generate Encryption Keys

You will need the Actor ID (Operator ID) to generate encryption keys, which can be found in Nayax Core under Administration > Operator > Details tab.

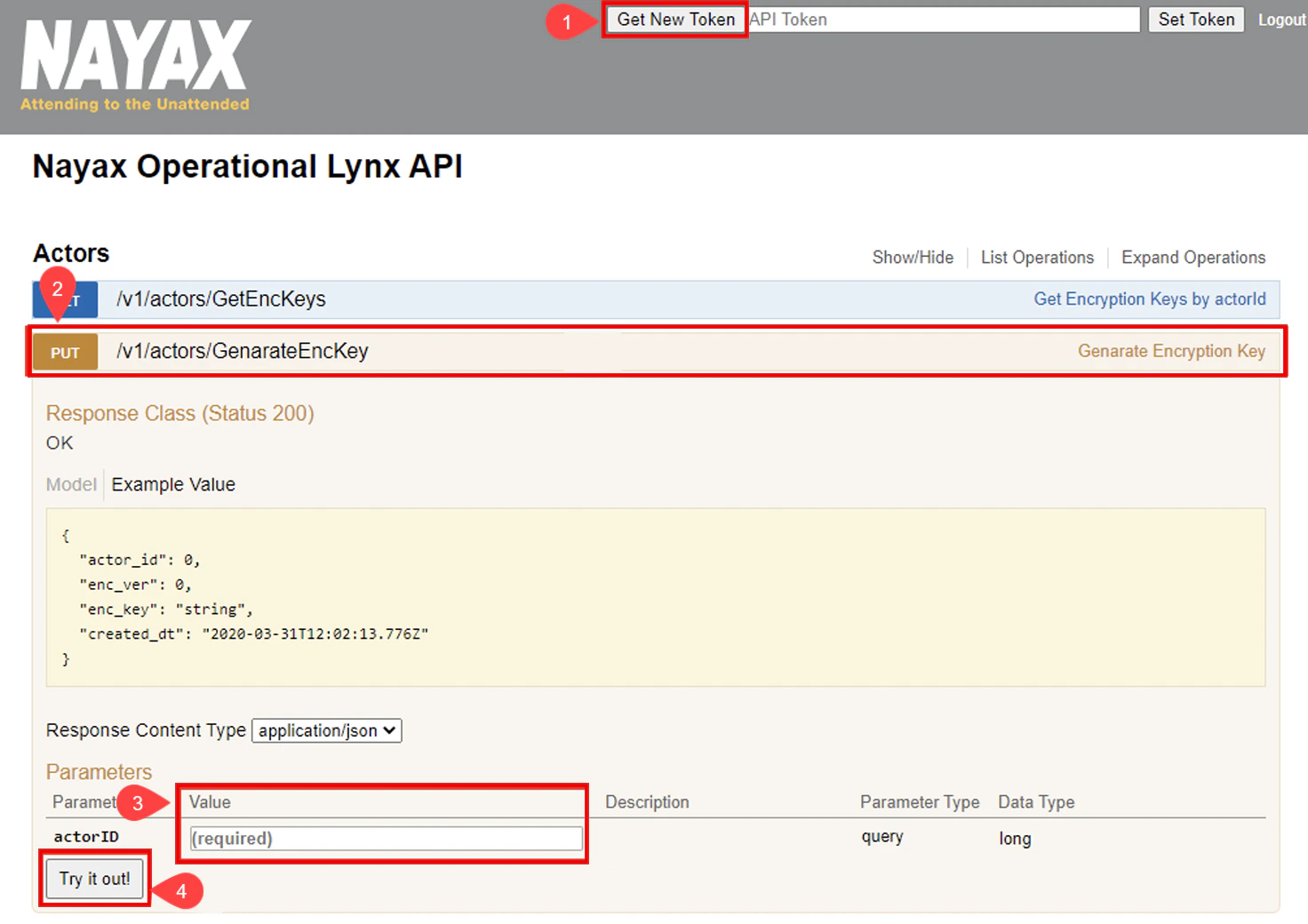

  1. Click the Generate New Token button in the top-right corner of the Lynx API interface.
  2. Select the PUT /v1/actors/GenerateEncKey row to reveal more details
  3. Enter in actorID parameter value.
  4. Click the Try it out! button to generate a new encryption key.
Encryption Key Usage and Refresh Guidelines
  • If the Enable Encryption checkbox is marked in any SQS message delivery configuration within Nayax Core, all messages sent to the queue will be encrypted using the generated encryption key.
  • The encryption key can be refreshed by repeating the steps above. Each new key will have an incremented enc_ver value, indicating the key version number.
The Response will contain the following values:
Field NameDescription
actor_idAuto generate unique id, represents the hierarchical entity in the hierarchy tree
enc_verNumerator identifying Encryption Key Version
enc_keyEncryption Key, Alphanumeric GUID used to encrypt Messages delivered to Amazon SQS
created_dtEncryption Key Creation Date and Time

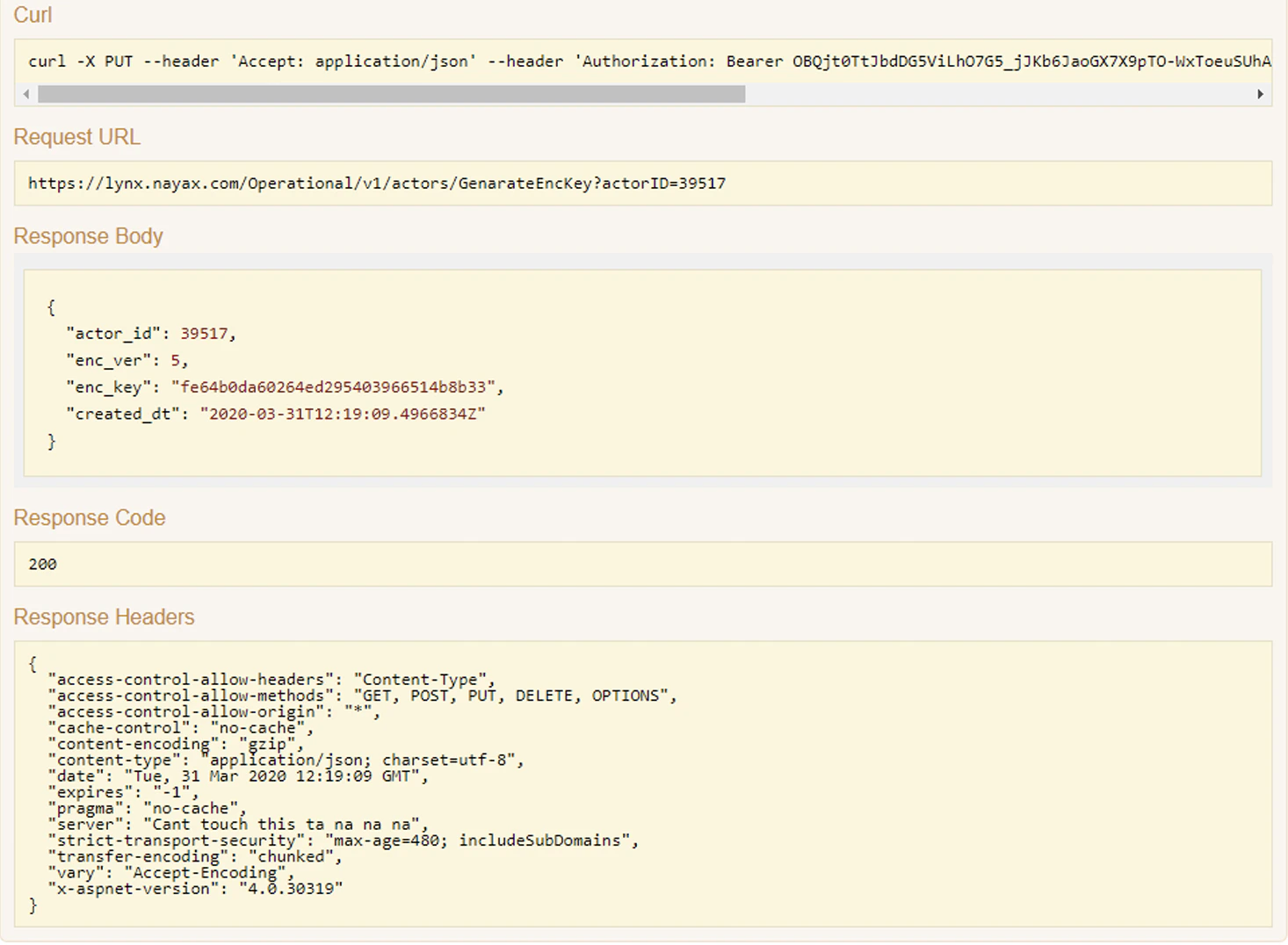

Example Response

​
List Encryption Keys

You can retrieve all previously generated keys using the Lynx API’s GET Encryption Keys option:

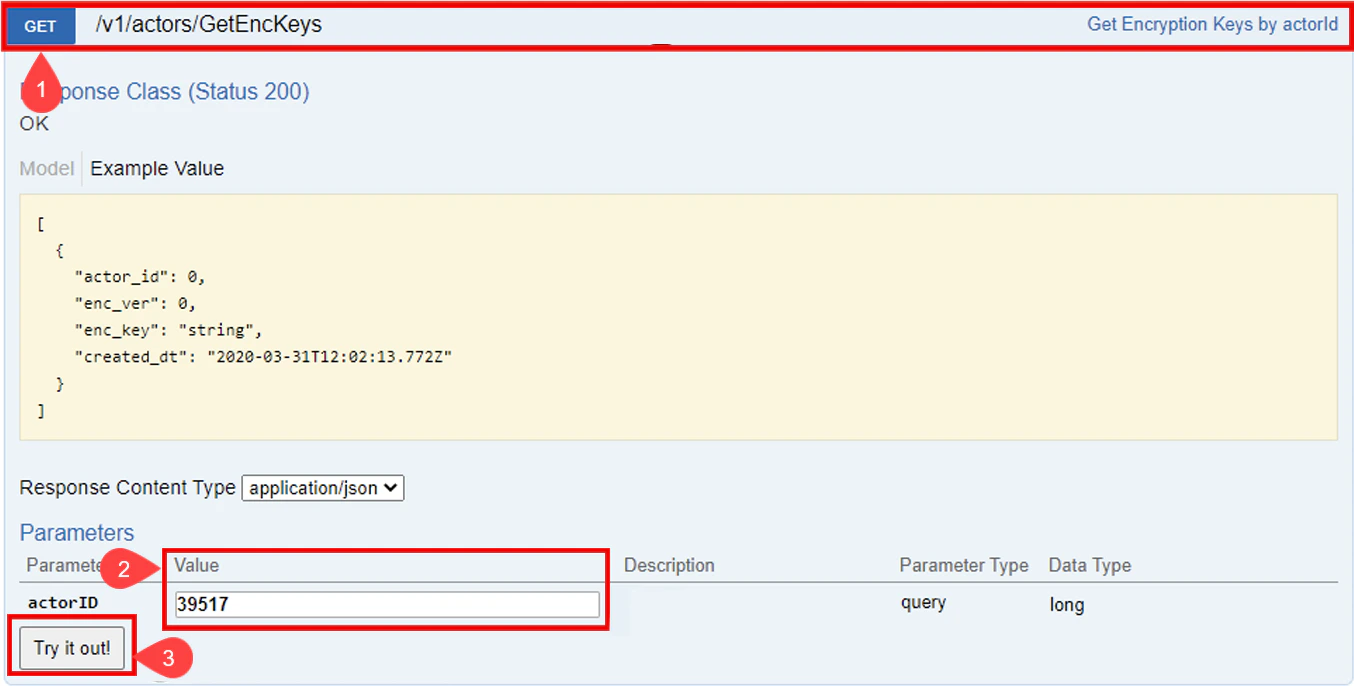

  1. Click on GET /v1/actors/GetEncKeys row to reveal more details
  2. Enter the actorID parameter value.
  3. Click the Try it out! button to view the list of generated keys. By following these steps, you can ensure secure and encrypted message delivery to Amazon SQS.

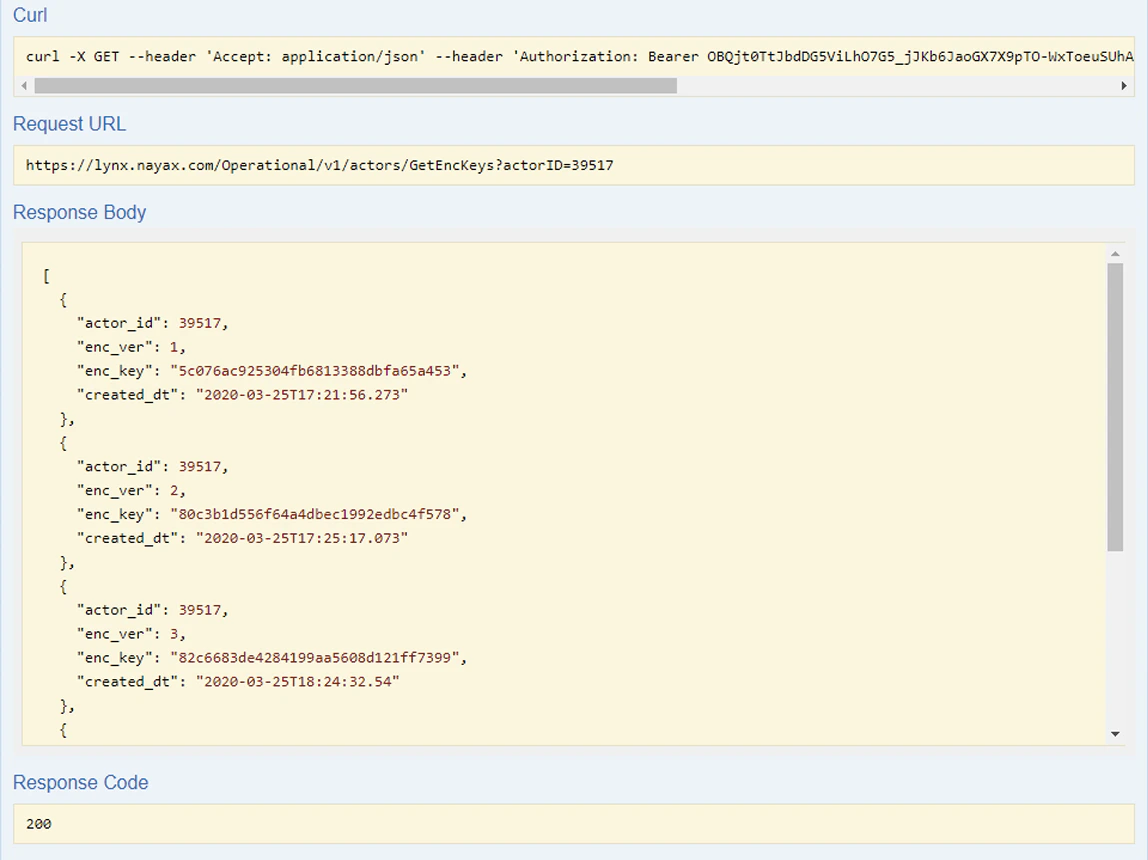

Example Response:

​
Decrypt Messages

You can also use the encryption key to perform the decryption of messages. See the code block below:
public string Decrypt(string cipherText)
    {
        using (Aes aesAlg = Aes.Create())
        {
            aesAlg.Key = Key;
            aesAlg.IV = IV;

            ICryptoTransform decryptor = aesAlg.CreateDecryptor(aesAlg.Key, aesAlg.IV);

            using (MemoryStream msDecrypt = new MemoryStream(Convert.FromBase64String(cipherText)))
            {
                using (CryptoStream csDecrypt = new CryptoStream(msDecrypt, decryptor, CryptoStreamMode.Read))
                {
                    using (StreamReader srDecrypt = new StreamReader(csDecrypt))
                    {
                        return srDecrypt.ReadToEnd();
                    }
                }
            }
        }
    }
}

     // AES Encryption Example
     string key = "0123456789abcdef"; // 16 bytes key
     string iv = "abcdef9876543210"; // 16 bytes IV

     AesEncryption aes = new AesEncryption(key, iv);

     string original = "Hello, World!";
     string decrypted = aes.Decrypt(encryptedMessage);
Where:
  1. It initializes the AES algorithm with a key and an initialization vector (IV) and then creates a decryptor.
  2. The encrypted message, provided as a Base64 string is converted back into bytes and read using a MemoryStream and CryptoStream with the decryptor.
  3. The decrypted data is then read and returned as the original plaintext string.
The method essentially reverses the encryption process to retrieve the original message.
