VPOS Touch
The following components are part of the Touch device setup. Each plays a specific role during installation and operation:
| Name | Description | Image |
|---|

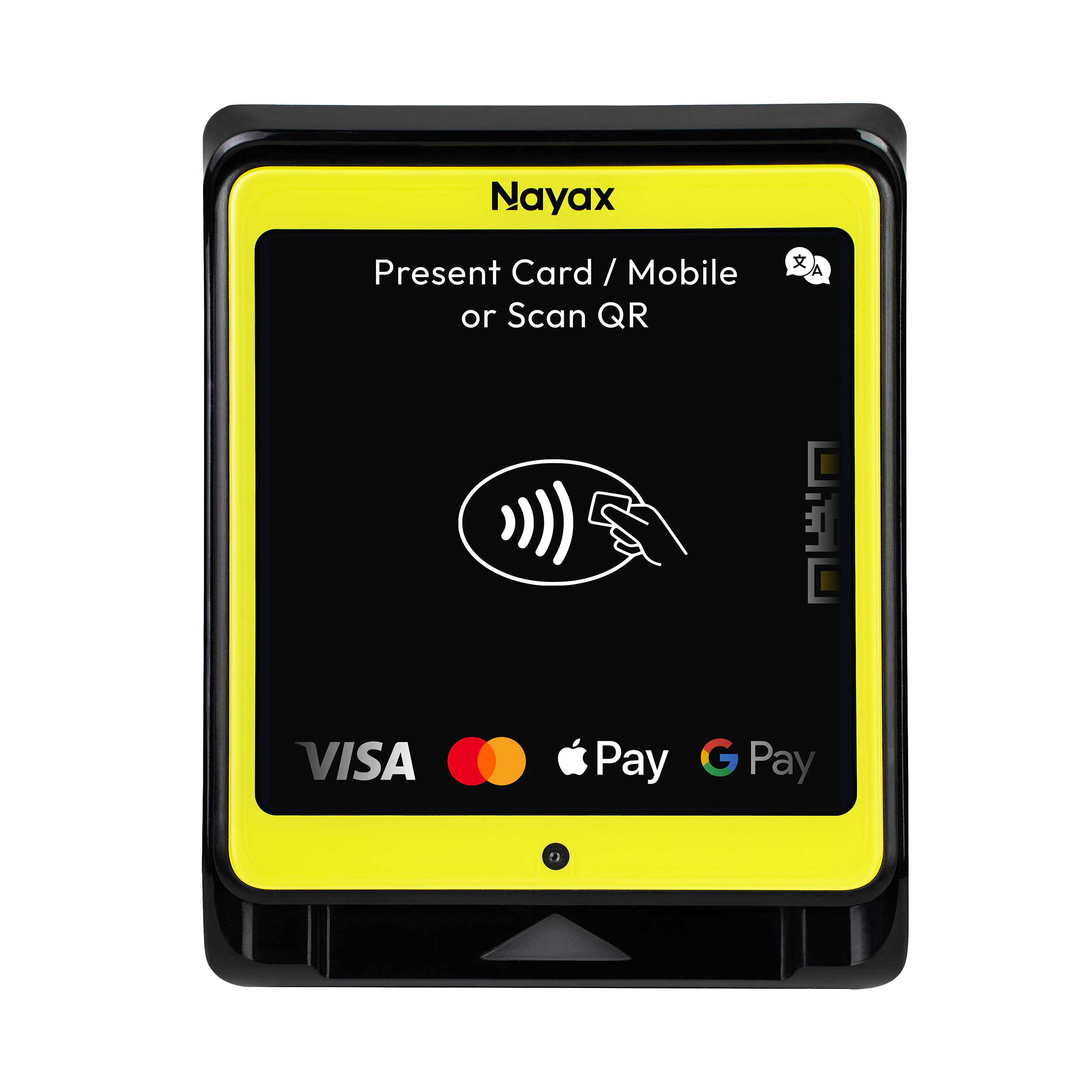

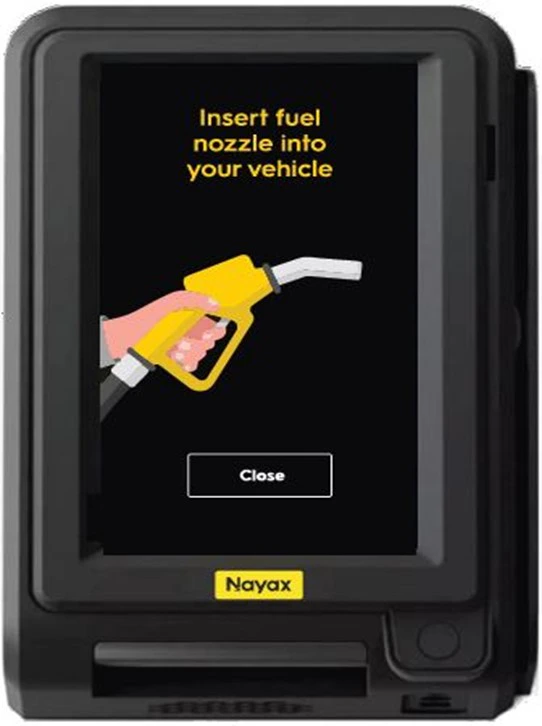

| Touch Device | The Nayax VPOS Touch Marshall device. | |
| Device Connector | Connects power, cables, and additional accessories required for the device’s operation. | |

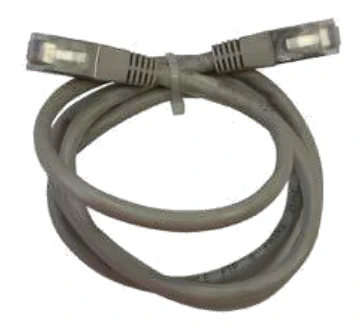

| LAN (Ethernet Cable Port) | Enables a wired connection to a router for internet access. | |

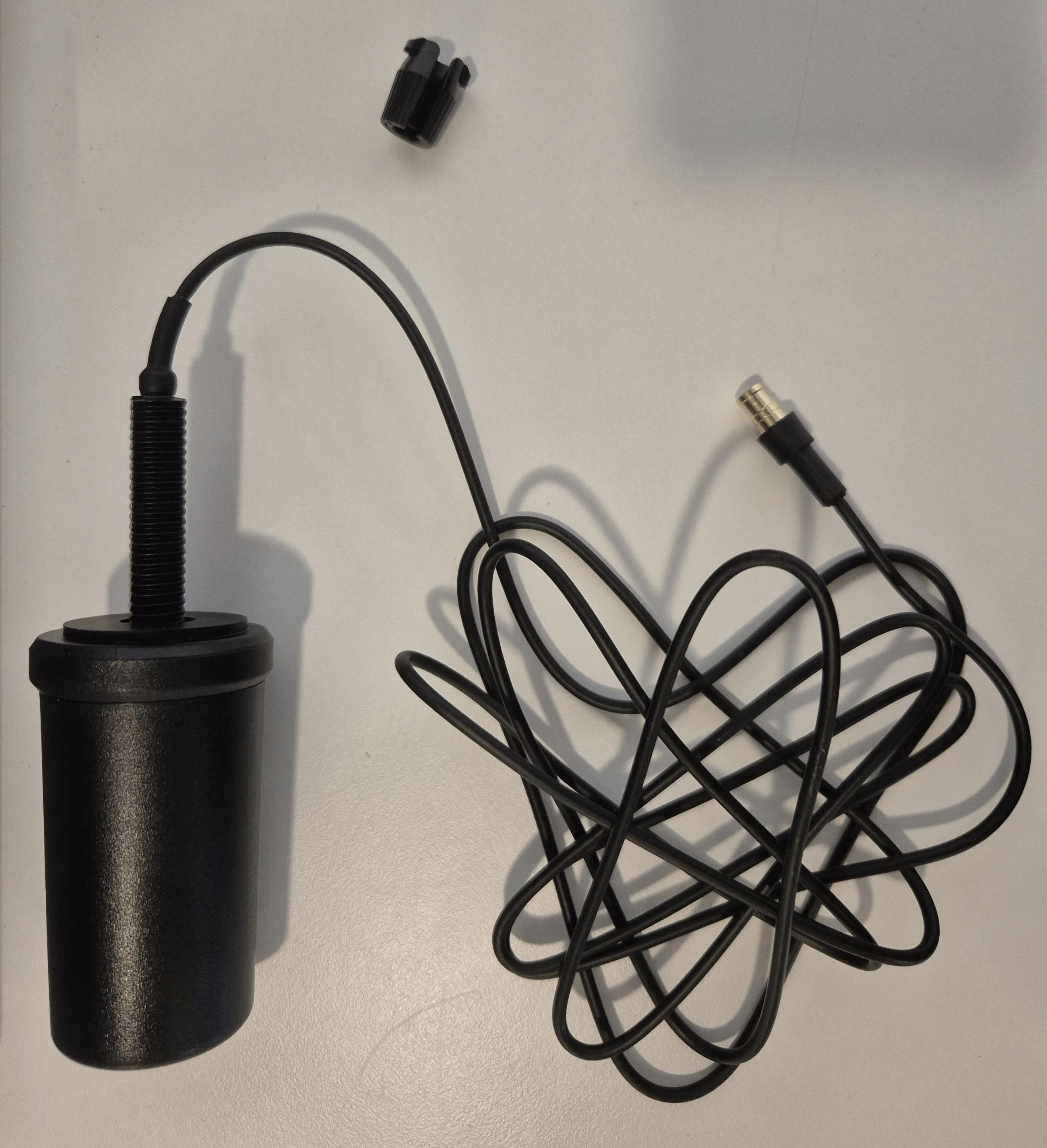

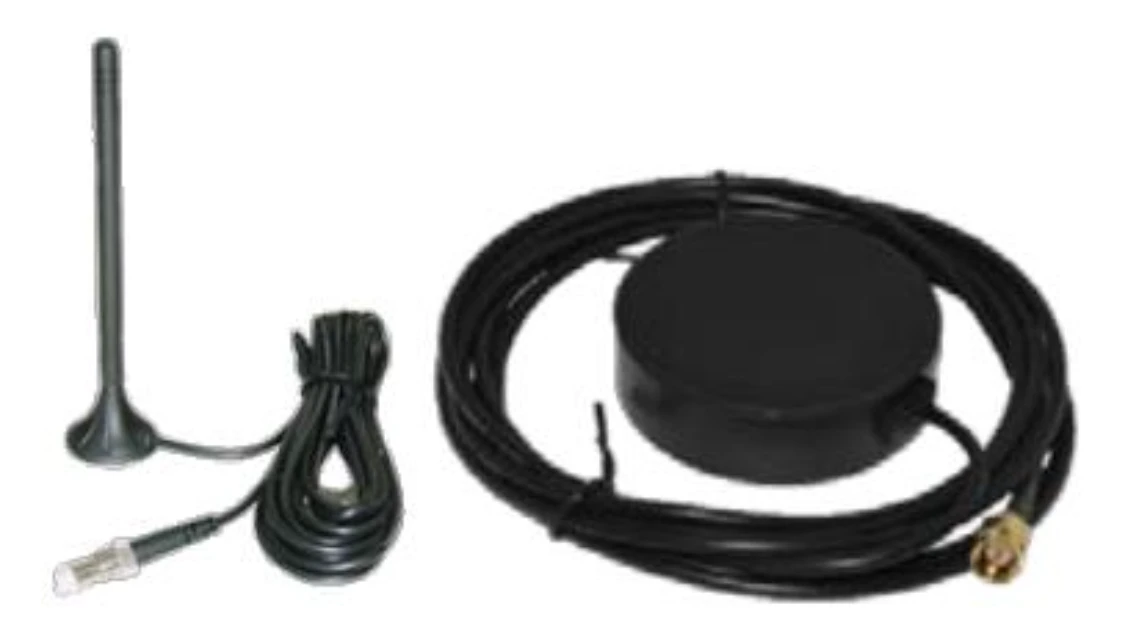

| Antenna | Attaches cellular antenna for network communication. | |
| SIM | SIM card for enabling data connectivity in Nayax Touch VPOS devices. | |

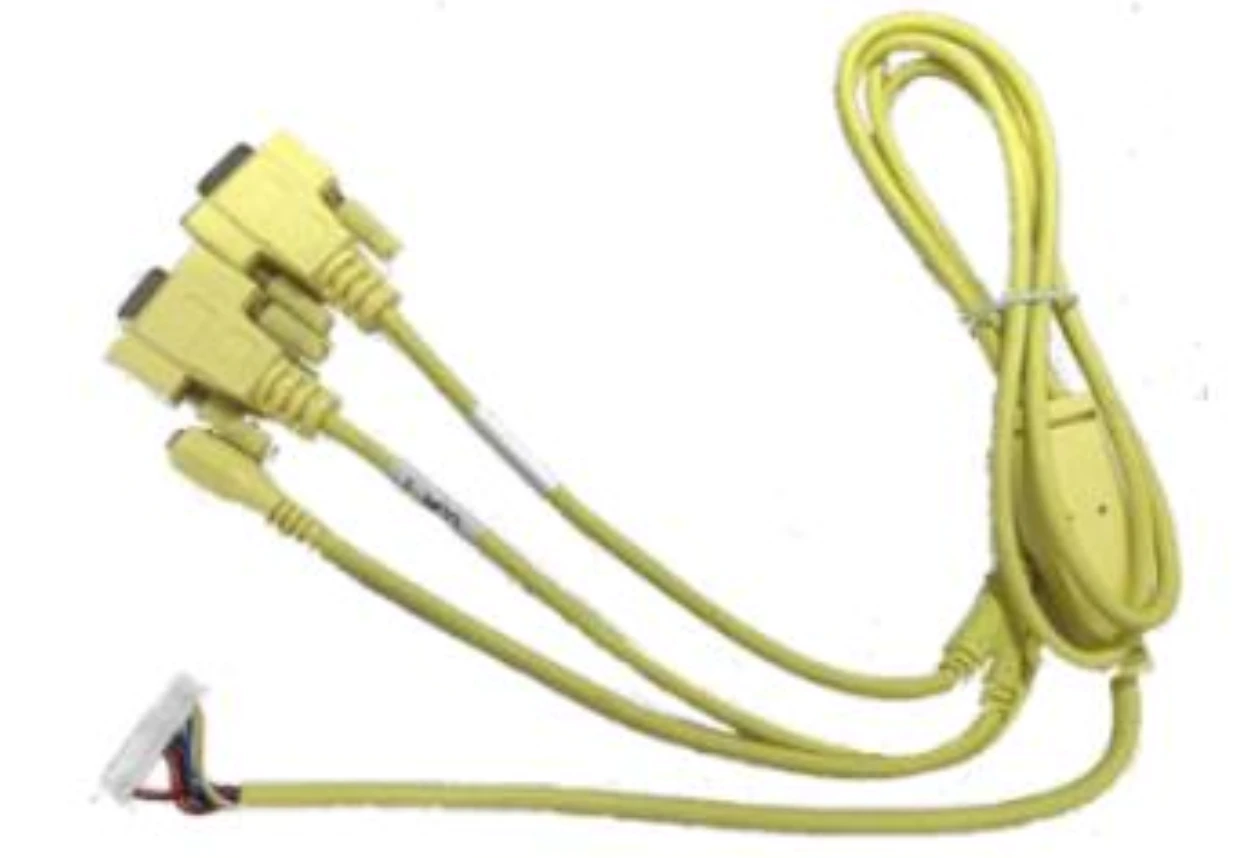

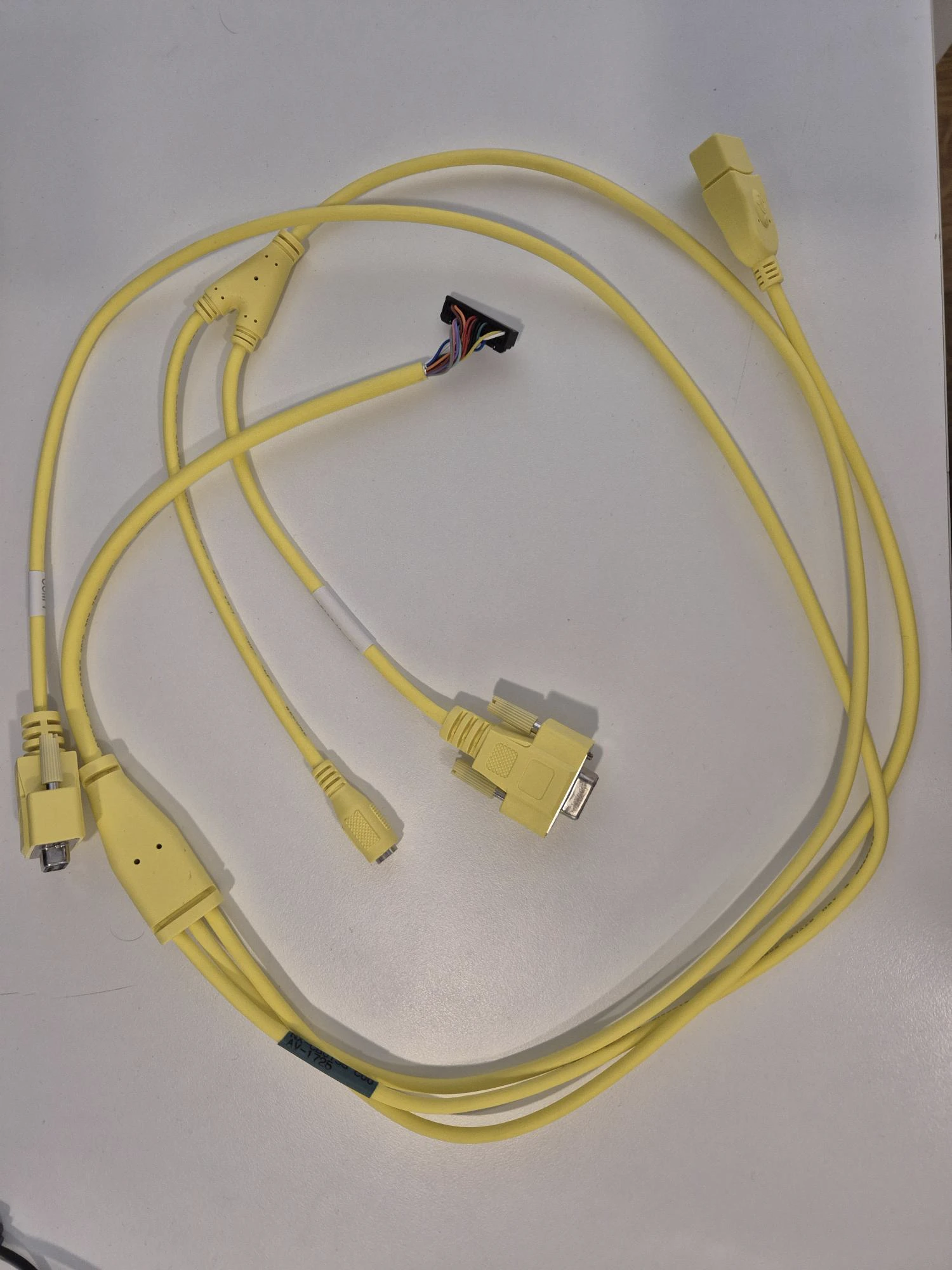

| Chipi-X USB2Com adaptor cable | USB-to-serial adaptor cable for connecting Nayax Touch VPOS devices. | |

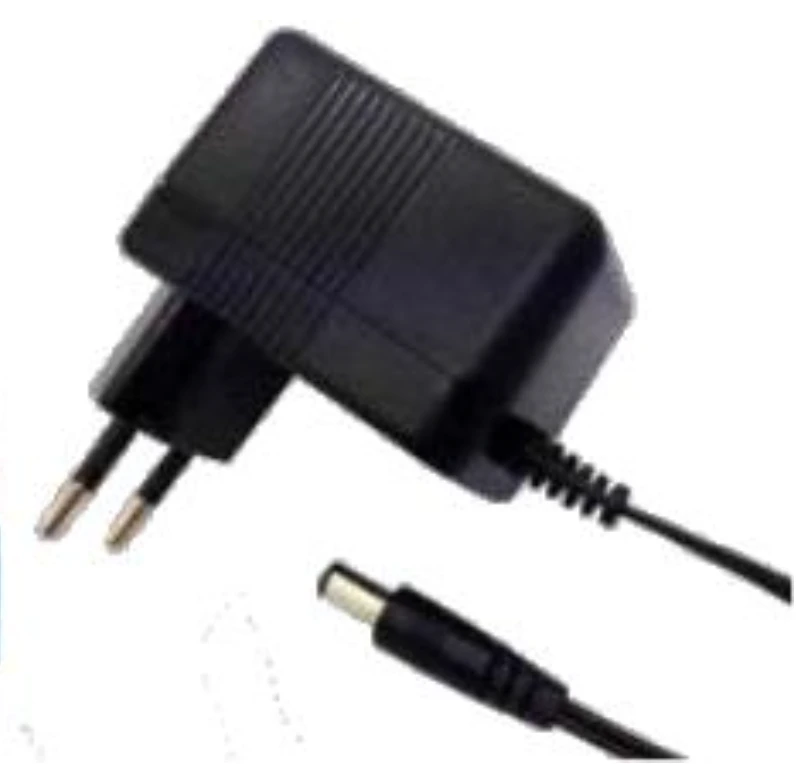

| 24V DC power adaptor | 24V DC power adaptor for powering Nayax Touch VPOS units. | |
| Name | Description | Image |
|---|

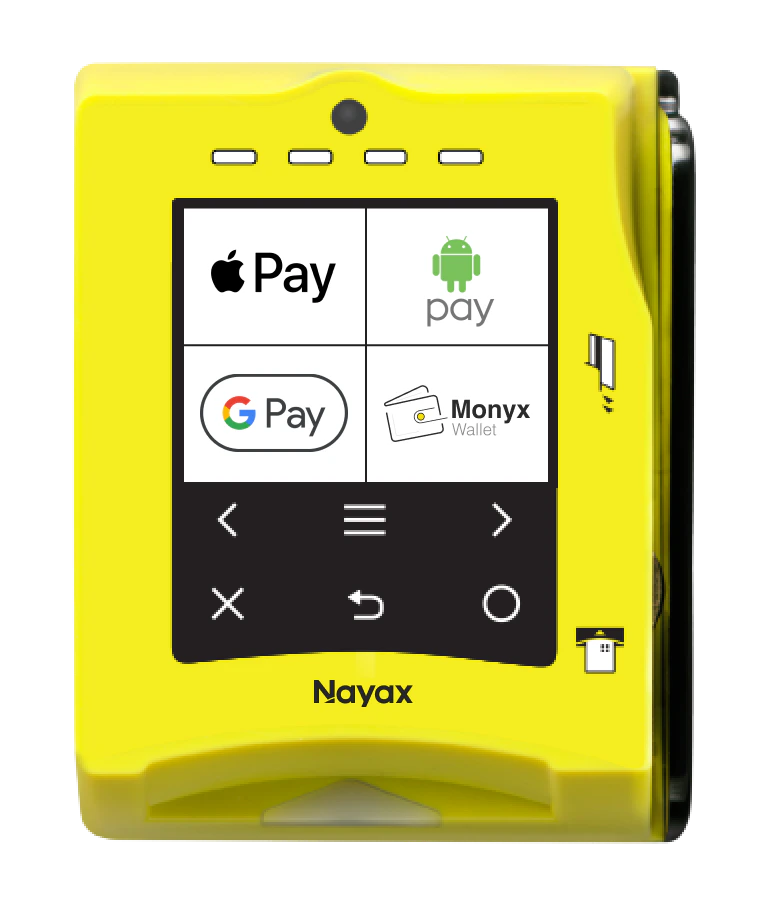

| Media Device | The Nayax VPOS Media Marshall device. | |

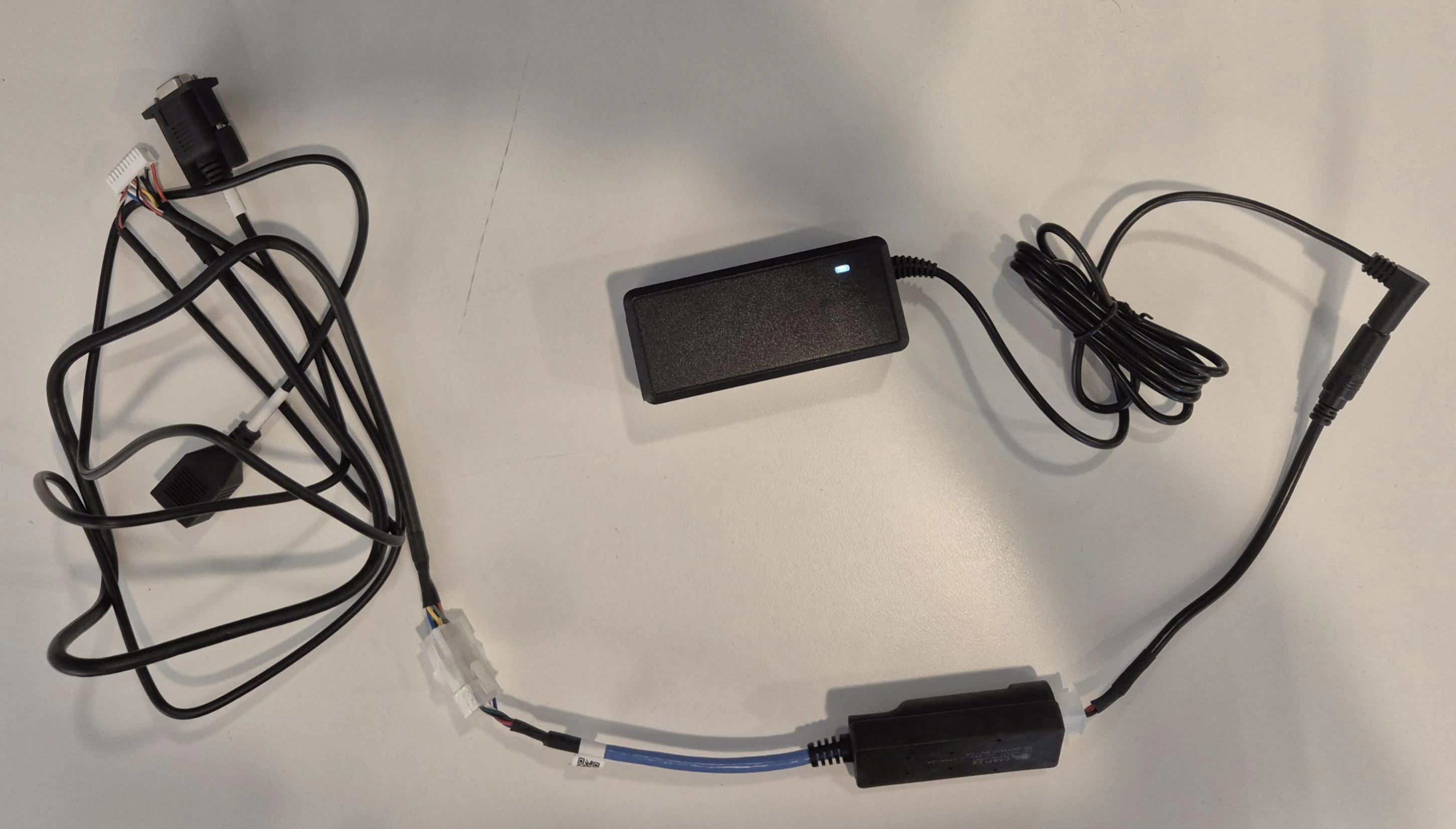

| Device Connector | Used to connect power, cables, and additional accessories required for the device’s operation.The cable consists of 3 parts. Appearing in the photo from left to right:
The cable itself (the one with the RS-232 connector), the ANEX (the part with the blue cable), and the power adapter. | |
| Antenna | Attaches cellular antenna for network communication. | |
| SIM | SIM card for enabling data connectivity in Nayax VPOS Media devices. | |
| Chipi-X USB2Com adaptor cable | USB-to-serial adaptor cable for connecting Nayax Touch VPOS devices. | |

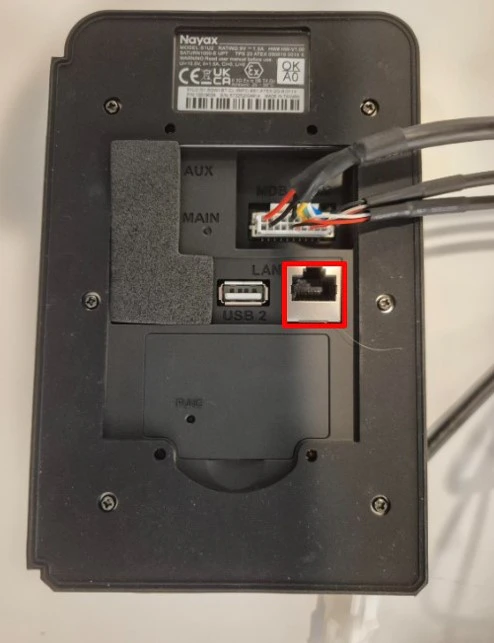

Important: The ETH cable should be connected directly to the device itself, and NOT via the Marshall cable. The RJ45 connector of the Marshall cable is not for LAN connectors but rather for DEX (as written on it).
| Name | Description | Image |
|---|
| Media Device | The Nayax VPOS Media Marshall device. | |

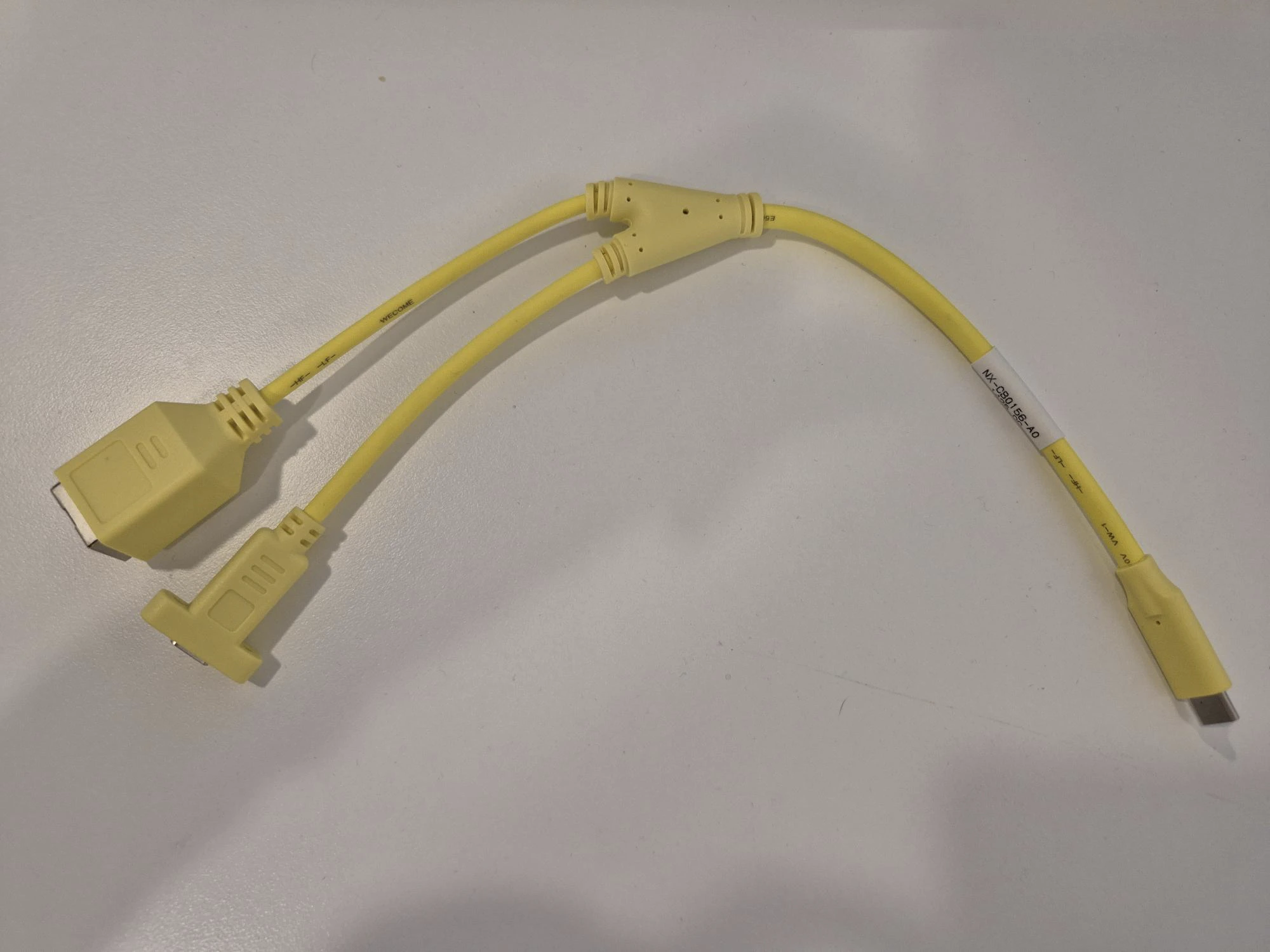

| Device Connector | Connects power, cables, and additional accessories required for the device’s operation. | |
| Chipi-X USB2Com adaptor cable | USB-to-serial adaptor cable for connecting Nayax Touch VPOS devices. | |
| ETH adaptor (optional)- USB-C to RJ45 | Optional. Relevant in case you’d like the device to communicate with your peripheral through Marshall via ETH (as opposed to Wifi or serial connection with the cable) | |
Note: VPOSM4S does not have a physical SIM card but rather an eSIM, and it also has an internal antenna.
