JSON-RPC API

While integrators should use the C API provided by libecodsdk, the JSON-RPC API is used by the EMV Core logs and is very useful during integration debugging.

Protocol Rules

Syntax Rules

All commands follow these formatting conventions:

All commands and events use the JSON-RPC 2.0 protocol with named parameters.
All commands and events require a response, except log() and ReaderMessageEvent(), which have no id.
Message format:

{"jsonrpc":"2.0", "method":"CommandName", "params": {"param1":value1, "param2":value2}, "id":idNumber}

Use a different id for each command (e.g., a running counter) to aid synchronization.
An illegal command returns a "Not existing command" response from the EMV Core.

Send & Receive

Sending a message:

Send the JSON-RPC message.
Wait for the JSON-RPC response.
Once data starts arriving, wait for a complete JSON (all parentheses closed), or a 1-second timeout.

Receiving a message (loop):

Wait for incoming data.
Once data starts arriving, wait for complete JSON, or a 1-second timeout.
Parse and process the message as JSON-RPC.
Send a JSON-RPC response (no response needed for ReaderMessageEvent; no response is sent for socket_data_received).

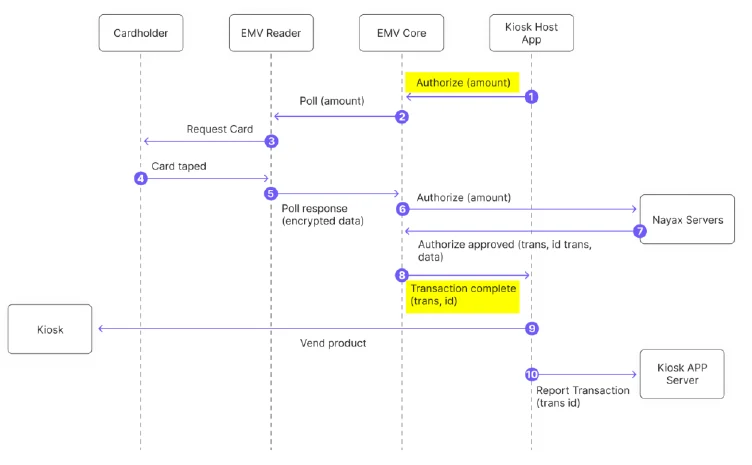

Payment Flow

A typical payment session follows this sequence:

POS sends PreAuthorize.
EMV Core responds (after card tap and authorization) with TransactionComplete.

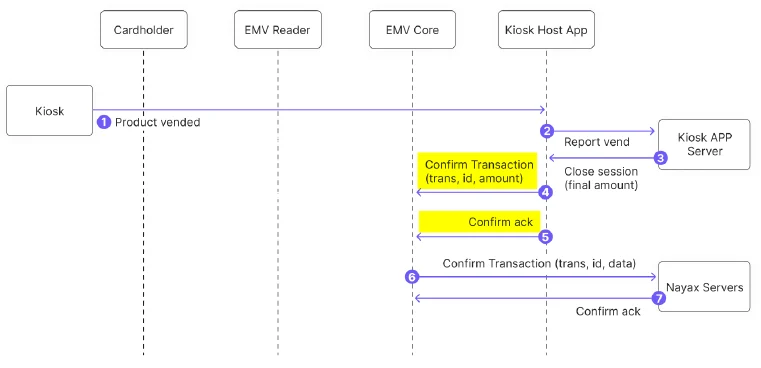

POS sends either ConfirmTransaction (product delivered) or VoidTransaction (otherwise).
POS may send CancelTransaction at any time; TransactionComplete will return with status Cancelled.

Important notes:

Always close a PreAuthorize session with Confirm or Void/Cancel. An unclosed session will be reversed by the processor after some time, which may incur higher fees.
Once ConfirmTransaction has been acknowledged by the EMV Core, do not re-send it.
To force synchronous processing, set PAYMENT_SVC_SYNCHRONOUS=1.

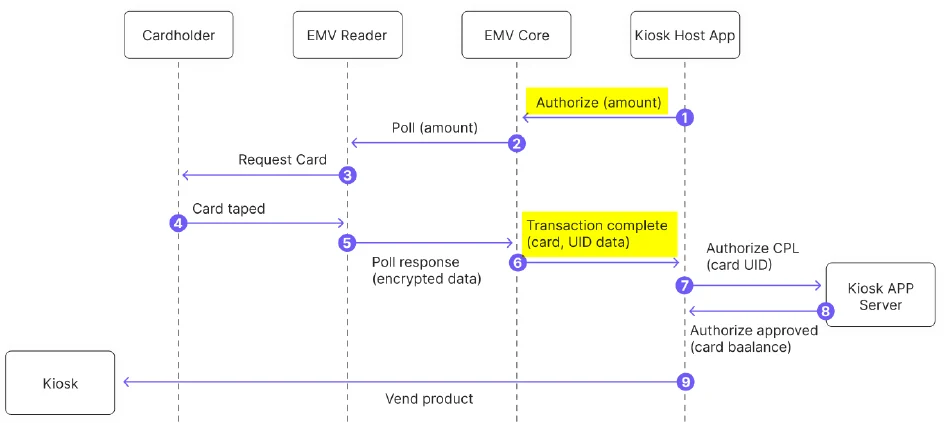

Closed Loop (CLP) Flow

For pre-paid cards, EMV Core immediately returns the card UID to the host application via TransactionComplete without sending to the Nayax server.

Commands

PreAuthorize

Pre-authorize a card with the payment processor. The EMV Core waits for a card, reads it, processes it, then sends TransactionComplete. Example:

>> {"jsonrpc":"2.0", "method":"PreAuthorize",
    "params": {"amount":150, "currency":840, "productid":5, "continuous":false, "timeout":60},
    "id":801}
<< {"jsonrpc": "2.0", "result": true, "id": 801}

Parameters:

Parameter	Description
`amount`	Amount to charge in full units (dollars, not cents)
`currency`	ISO 4217 code (e.g., 840 = USD)
`productID`	Optional: product ID selected by consumer, saved in server for reports
`continuous`	If `true`, poll for card restarts immediately after timeout; `TransactionComplete` returns `PollContinuous`
`timeout`	Maximum seconds to wait for a card. Returns `Timeout` status if no card arrives.

ConfirmTransaction

Confirms the pre-authorization so the payment can settle. Example:

>> {"jsonrpc":"2.0", "method":"ConfirmTransaction",
    "params": {"amount":150, "productID":1, "transaction_Reference":"8453F02DFD33413EBA7733"},
    "id":616386422}
<< {"jsonrpc":"2.0", "result":true, "id":616386422}

Parameters:

Parameter	Description
`Amount`	Actual amount to charge in minor units (cents)
`transactionReference`	`TransactionDbID` from the `TransactionComplete` event
`productID`	Optional: product ID, saved in server for reports
`terminal_data`	Optional: `terminal_data=(key1=value1,key2=value2)`; passed to PSP in online requests

VoidTransaction

Void a transaction in two cases:

Transaction was pre-authorized but not confirmed, to release reserved funds.
Transaction was completed but needs to be canceled (e.g., product not vended).

Example:

>> {"jsonrpc":"2.0", "method":"VoidTransaction",
    "params": {"transaction_Reference":"8453F02DFD33413EBA77334B696D5991"}, "id":803}
<< {"jsonrpc":"2.0", "result":true, "id":803}

Parameter	Description
`transactionReference`	Transaction reference from the `TransactionComplete` event

VoidTransaction does not return an event. Check voided transaction status in TMS by searching for Cancel and Cancel Declined statuses.

CancelTransaction

Cancels the last transaction started by PreAuthorize:

Card not yet presented: Stops the reader poll sequence. The display shows “Cancelling”; the host application must update the display.
Card already presented but not completed: Returns CannotCancel. TransactionComplete arrives after the online authorization result.
Transaction already completed: Returns NoTransaction.
For CannotCancel or NoTransaction, use VoidTransaction to undo a successful transaction.
If TransactionComplete returns Decline, no VoidTransaction is needed.

Example:

>> {"jsonrpc":"2.0", "method":"CancelTransaction", "id":802}
<< {"jsonrpc":"2.0", "result":true, "id":802}

GetCardToken

Returns a card token without performing a payment transaction. Returns CardTokenReceived event.

For payment cards: returns a base64 card token.
For CLP (e.g., Mifare) cards: returns the card UID.

Example:

>> {"jsonrpc":"2.0","method":"GetCardToken","params":{"continuous":false,"timeout":60},"id":5820}
<< {"jsonrpc":"2.0", "result":true, "id":5820}

Parameter	Description
`timeoutSeconds`	Maximum seconds to wait. Maximum value: 60 seconds.

Notes:

Requires tag DFA155 added to the reader’s Clear results tag list.
CLP card UID is returned only when CLP_MIFARE_ENABLED=2.

GetStatus

Returns the current EMV Core status. Example:

>> {"jsonrpc":"2.0", "method":"GetStatus", "id":805}
<< {"jsonrpc":"2.0", "result":"Ready", "id":805}

Result values: {NotReady, Ready, PaymentTransaction, Update, NoReader, NoTerminalId}

ShowMessage

Shows a message on the OTI Saturn Reader display. Example:

>> {"jsonrpc":"2.0", "method":"ShowMessage",
    "params": {"line1":"Please Select", "line2":"Your Product"}, "id":901}
<< {"jsonrpc":"2.0", "result":true, "id":901}

Parameter	Description
`line1`	Text for line 1 of the reader display (max 16 characters)
`line2`	Text for line 2 of the reader display (max 16 characters)

GetVersion

Returns the version of components in the system. Example:

>> {"jsonrpc":"2.0", "method":"GetVersion", "params":{"component":"Reader"}, "id":902}
<< {"jsonrpc":"2.0", "result":"S8_v054105", "id":902}

Parameter	Values
`component`	`otiKiosk` (for EMV Core version) or `Reader`

GetKioskID

Returns the Kiosk identification number. Example:

>> {"jsonrpc":"2.0", "method":"GetKioskID", "params":{}, "id":902}
<< {"jsonrpc":"2.0", "result":"00130226001C9C69", "id":902}

GetAttribute

Returns the value of an EMV Core configuration attribute. Example:

>> {"jsonrpc":"2.0","method":"GetAttribute", "params": {"Key":"PRE_AUTH_AMOUNT"}, "id":12}
<< {"jsonrpc":"2.0", "result":"150", "id":12}

// If attribute not found:
<< {"jsonrpc":"2.0", "error":{"code":-1, "message":"Get attribute key not found"}, "id":12}

Events

TransactionComplete

Sent by the EMV Core when a transaction completes (success or failure). Contains all data needed for receipts and dispute resolution. Note: If no acknowledgment is received, the EMV Core resends up to 2 times (3 total). If still no answer, it assumes the message was received and does not cancel the transaction. Example (open loop):

<< {"jsonrpc":"2.0", "method":"TransactionComplete", "params": {
    "status":"OK", "errorCode":0, "errorDescription":"",
    "transactionId":"6856770806",
    "authorizationDetails": {
        "AmountAuthorized":4.50, "AmountRequested":4.50,
        "AuthorizationCode":"AuthOK", "PartialPan":"453997******4280",
        "CardType":"Visa Credit", "IsTransactionApproved":true,
        "eReceipt":"https://wee.ai/tr/...",
        "Card_ID":"2026-02-10 10:15:32.057|6|3", "Card_Balance":0.00,
        "RRN":"260210081532", "TransactionDbID":"6856770806",
        "Transaction_Referance":"6856770806",
        "CardToken":"kC7WxiEKKUMw/lNddlT5MiMGX/uvea4/aEtjOljLNlY=",
        "Additional_Parameters": {
            "hwSerial":"4207012624000108","SiteId":"6","EntryMode":"4",
            "MachineAuTime":"2026-02-10T10:15:32.057",
            "NayaxTransactionId":"6856770806"
        }}}, "id":701}
>> {"jsonrpc":"2.0", "result":true, "id":701}

Parameters:

Field	Description
`status`	`OK`, `Declined`, `Error`, `Timeout`, `Cancelled`, `LocalCLP`
`errorCode`	Numeric error code (0 = no error; positive = PSP errors; negative = OTI system errors)
`errorDescription`	Technical error description for developers; do not display to users
`transactionId`	Use for `ConfirmTransaction` or `VoidTransaction`

Authorization Details fields:

Field	Description
`AmountAuthorized`	Amount approved in major units (may be lower for prepaid cards)
`AmountRequested`	Amount requested in major units
`Authorization_Code`	PSP transaction identifier for approved transactions
`PartialPan`	Masked PAN (first 6 and last 4 digits)
`CardType`	Card scheme (MasterCard, Visa, Amex, etc.) or closed-loop card technology
`IsTransactionApproved`	Boolean approval status
`eReceipt`	URL for Nayax eReceipt
`Card_ID`	Mifare UID when `CLP_MIFARE_ENABLED=2`
`RRN`	Processor reference number for approved transactions
`CardToken`	Base64 token for payment cards; card UID for closed-loop cards
`Additional_Parameters`	Optional fields for Nayax External Settlement: `SiteId`, `EntryMode`, `MachineAuTime`, `NayaxTransactionId`

Closed-loop card types:

Card Type	Description
`Type A`	ISO/IEC 14443 Type A
`Type B`	ISO/IEC 14443 Type B
`Mifare`	Mifare
`Mifare-U`	Mifare Ultralight
`DesFire`	Mifare DESFire
`Mifare-P`	Mifare Plus
`Vicinity`	ISO/IEC 15693
`Vicinity-P`	ISO/IEC 15693 HID iClass
`Felica`	FeliCa JIS X 6319-4
`CLP`	Unknown closed loop

CardTokenReceived

Sent when GetCardToken is completed. Example:

>> {"jsonrpc":"2.0", "method":"CardTokenReceived", "params": {
    "status":"OK", "errorCode":0, "errorDescription":"",
    "CardToken":"WSAr79nKPywW3INXrWvr6IL3vgTgSJlwZBgseKDmMHM=",
    "PartialPan":""}, "id":702}

ReaderMessageEvent

Sent when the display message on the Saturn Reader changes. Use this to synchronize the kiosk application with reader state. Note: Requires the reader to be configured to send External Display message events (Tag DF 46 with index 04). This event does not require acknowledgment. Example:

<< {"jsonrpc":"2.0", "method":"ReaderMessageEvent",
    "params": {"index":36, "line1":"Authorizing", "line2":"Please wait"}}

Message Index:

Hex	Decimal	Message	LED
0x01	1	Present card	LED1 On
0x11	17	Welcome	LED1 Blink
0x05	5	Please present one card only	—
0x33	39	Read error — Please try again	—
0x24	36	Authorizing — Please wait	Chasing LEDs
0x06	6	Approved	—
0x09	9	Not Approved	—
0x30	30	Timeout — No Card	—
0x26	38	Insert Card	—
0x0A	10	Terminated	—
0x0B	11	Contactless fail — PIN required	—
0x0C	12	See Phone	—
—	255	Declined	—

Network Protocol

Socket API

socket_connect

Opens a TCP socket to a remote host.

>> {"jsonrpc":"2.0", "method":"socket_connect",
    "params": {"address":"tms.otiglobal.com", "port":80, "timeout_sec":10}, "id":1426}
<< {"jsonrpc":"2.0", "result":2, "id":1426}

Returns a positive socket ID on success, or a negative error number on failure.

socket_send

Sends data in binary form. Blocks until data is sent. hex_data is a hex-encoded string (2 ASCII characters per byte).

>> {"jsonrpc":"2.0", "method":"socket_send",
    "params": {"socket_id":2, "hex_data":"474554202F..."}, "id":813}
<< {"jsonrpc":"2.0", "result":165, "id":813}

socket_recv

Receives data from a socket. Returns hex-encoded data.

>> {"jsonrpc":"2.0", "method":"socket_recv",
    "params": {"socket_id":16, "max_bytes":99}, "id":1644}
<< {"jsonrpc":"2.0", "result":"7B2243757272656E74...", "id":1644}

socket_close

>> {"jsonrpc":"2.0","method":"socket_close","params":{"socket_id":2}, "id":815}
<< {"jsonrpc":"2.0", "result":0, "id":815}

socket_data_received (event)

Sent by the host when data is available on an open socket. The device does not respond.

<< {"jsonrpc":"2.0","method":"socket_data_received",
    "params":{"socket_id":2, "number_of_bytes":458}}
>> [no response]

Network Management APIs

network_get_status

Returns "on" if network is available.

>> {"jsonrpc":"2.0", "method":"network_get_status", "id":811}
<< {"jsonrpc":"2.0", "result":"on", "id":811}

network_get_info

Returns network channel, operator, technology (3G/4G), signal strength, and BER.

resolve_host_name

DNS resolution: returns list of IP addresses and TTL.

>> {"jsonrpc":"2.0", "method":"resolve_host_name",
    "params": {"host_name":"httpbin.org"}, "id":812}
<< {"jsonrpc":"2.0", "result": {"addresses":"44.217.225.103, 107.23.72.23", "TTL":10}, "id":812}

EMV Core Guides

Android & Linux SDK

RTOS SDK

UNO-mini Hardware

Release Notes

Protocol Rules

Syntax Rules

Send & Receive

Payment Flow

Closed Loop (CLP) Flow

Commands

PreAuthorize

ConfirmTransaction

VoidTransaction

CancelTransaction

GetCardToken

GetStatus

ShowMessage

GetVersion

GetKioskID

GetAttribute

Events

TransactionComplete

CardTokenReceived

ReaderMessageEvent

Network Protocol

Socket API

socket_connect

socket_send

socket_recv

socket_close

socket_data_received (event)

Network Management APIs

network_get_status

network_get_info

resolve_host_name

​Protocol Rules

​Syntax Rules

​Send & Receive

​Payment Flow

​Closed Loop (CLP) Flow

​Commands

​PreAuthorize

​ConfirmTransaction

​VoidTransaction

​CancelTransaction

​GetCardToken

​GetStatus

​ShowMessage

​GetVersion

​GetKioskID

​GetAttribute

​Events

​TransactionComplete

​CardTokenReceived

​ReaderMessageEvent

​Network Protocol

​Socket API

​socket_connect

​socket_send

​socket_recv

​socket_close

​socket_data_received (event)

​Network Management APIs

​network_get_status

​network_get_info

​resolve_host_name

Protocol Rules

Syntax Rules

Send & Receive

Payment Flow

Closed Loop (CLP) Flow

Commands

PreAuthorize

ConfirmTransaction

VoidTransaction

CancelTransaction

GetCardToken

GetStatus

ShowMessage

GetVersion

GetKioskID

GetAttribute

Events

TransactionComplete

CardTokenReceived

ReaderMessageEvent

Network Protocol

Socket API

socket_connect

socket_send

socket_recv

socket_close

socket_data_received (event)

Network Management APIs

network_get_status

network_get_info

resolve_host_name
